Please send RFQ , we will respond immediately.

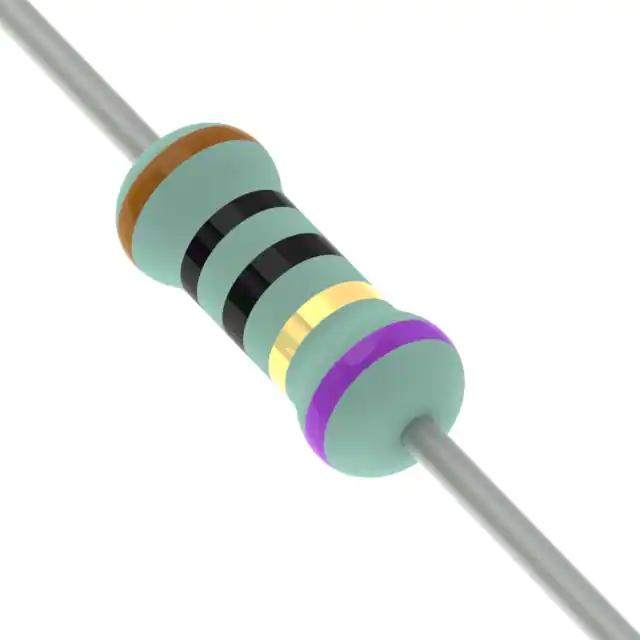

| Part Number | PNP200JR-52-10R | PNP200JR-52-1R | PNP200JR-52-12R | PNP200JR-52-15R | PNP200JR-52-18R | PNP200JR-52-11R | PNP200JR-52-13R | PNP200JR-52-16R | PNP200JR-52-20R | PNP200JR-52-30R | PNP200JR-52-100R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 1 Ohms | 12 Ohms | 15 Ohms | 18 Ohms | 11 Ohms | 13 Ohms | 16 Ohms | 20 Ohms | 30 Ohms | 100 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | - | - | - | - | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
