PNP1WVJT-52-36R
  • Share:

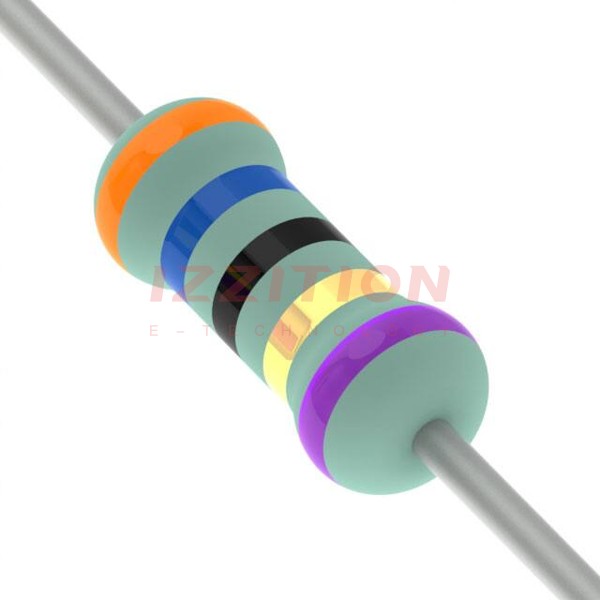

YAGEO PNP1WVJT-52-36R

Manufacturer No:
PNP1WVJT-52-36R
Manufacturer:
YAGEO
Package:
Tape & Box (TB)
Datasheet:
PNP1WVJT-52-36R Datasheet
ECAD Model:
-
Description:
RES 36 OHM 5% 1W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:36 Ohms
Tolerance:±5%
Power (Watts):1W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.169" Dia x 0.394" L (4.30mm x 10.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.08
12,172

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP1WVJT-52-36R PNP1WVJT-52-39R   PNP1WVJT-52-3R   PNP1WVJT-52-56R   PNP1WVJT-52-16R   PNP1WVJT-52-30R   PNP1WVJT-52-33R   PNP1WVJT-52-360R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active
Resistance 36 Ohms 39 Ohms 3 Ohms 56 Ohms 16 Ohms 30 Ohms 33 Ohms 360 Ohms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 1W 1W 1W 1W 1W 1W 1W 1W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm) 0.169" Dia x 0.394" L (4.30mm x 10.00mm)
Height - Seated (Max) - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - -
