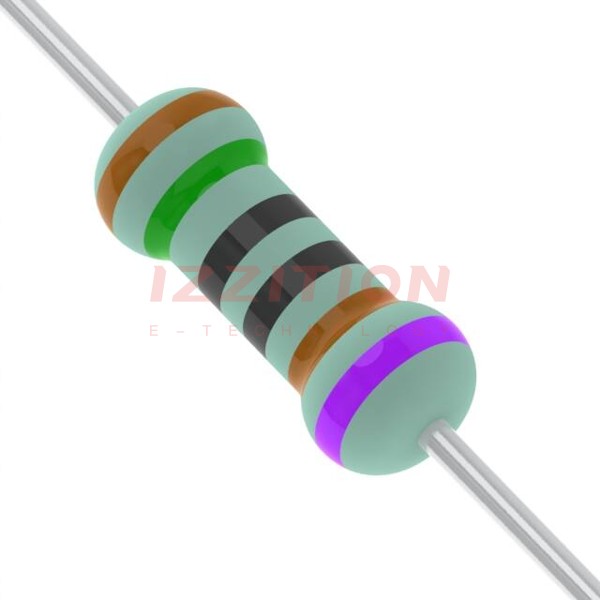

| Part Number | PNP1WVFR-52-150R | PNP1WVJR-52-150R | PNP1WVFR-52-15R | PNP1WVFR-52-50R | PNP1WVFR-52-250R | PNP1WVFR-52-100R | PNP1WVFR-52-10R | PNP1WVFR-52-120R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 Ohms | 150 Ohms | 15 Ohms | 50 Ohms | 250 Ohms | 100 Ohms | 10 Ohms | 120 Ohms |
| Tolerance | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) | 0.169" Dia x 0.394" L (4.30mm x 10.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
