Please send RFQ , we will respond immediately.

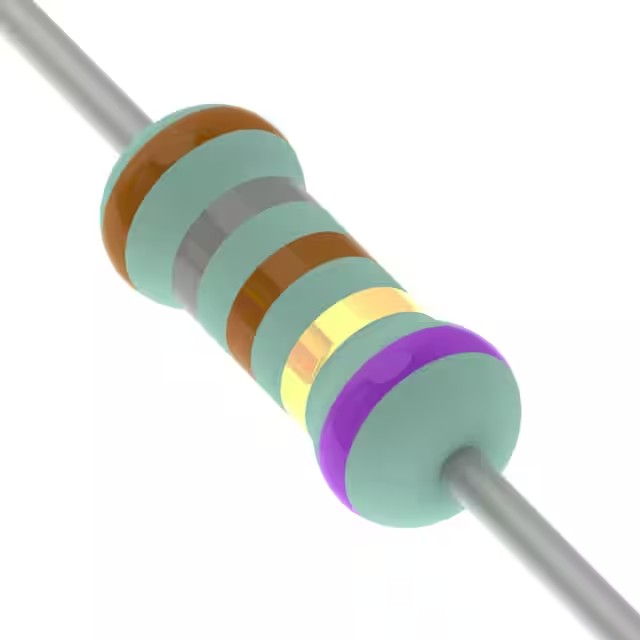

| Part Number | PNP10VJT-91-180R | PNP10VJT-91-18R | PNP10VJT-91-680R | PNP10VJT-91-100R | PNP10VJT-91-10R | PNP10VJT-91-120R | PNP10VJT-91-150R | PNP10VJT-91-160R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 180 Ohms | 18 Ohms | 680 Ohms | 100 Ohms | 10 Ohms | 120 Ohms | 150 Ohms | 160 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | - | - | ±300ppm/°C | - | - | - | - | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) | 0.315" Dia x 1.732" L (8.00mm x 44.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
