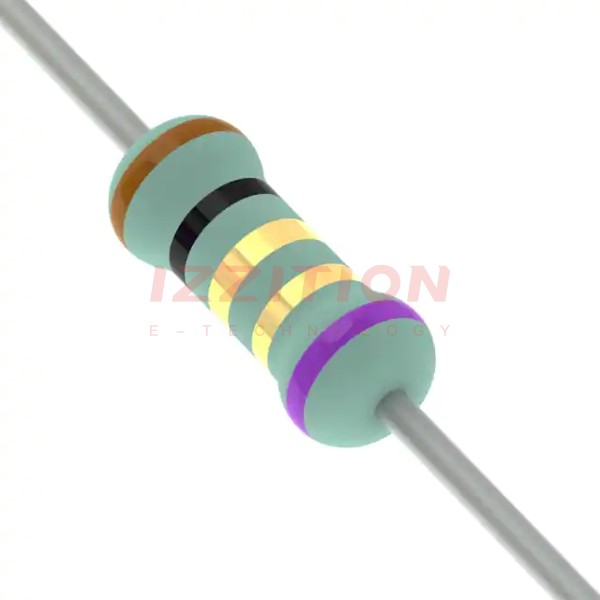

| Part Number | PNP100JR-52-1R | PNP100JR-52-1R2 | PNP100JR-52-1R5 | PNP100JR-52-1R8 | PNP100JR-52-10R | PNP100JR-52-12R | PNP100JR-52-15R | PNP100JR-52-18R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 Ohms | 1.2 Ohms | 1.5 Ohms | 1.8 Ohms | 10 Ohms | 12 Ohms | 15 Ohms | 18 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
