PNP100JR-52-12R
  • Share:

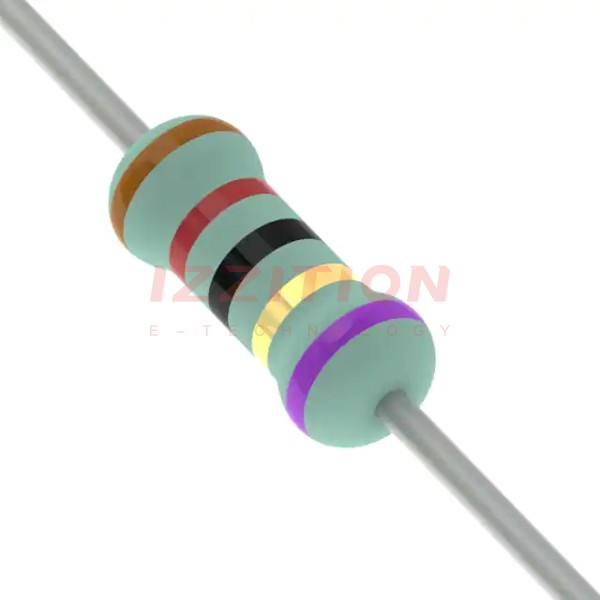

YAGEO PNP100JR-52-12R

Manufacturer No:
PNP100JR-52-12R
Manufacturer:
YAGEO
Package:
Tape & Reel (TR)
Datasheet:
PNP100JR-52-12R Datasheet
ECAD Model:
-
Description:
RES 12 OHM 5% 1W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:12 Ohms
Tolerance:±5%
Power (Watts):1W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:-
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.098" Dia x 0.248" L (2.50mm x 6.30mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.05
19,788

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP100JR-52-12R PNP100JR-52-15R   PNP100JR-52-18R   PNP100JR-52-22R   PNP100JR-52-1R   PNP100JR-52-10R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active
Resistance 12 Ohms 15 Ohms 18 Ohms 22 Ohms 1 Ohms 10 Ohms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 1W 1W 1W 1W 1W 1W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient - - - - - -
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial
Size / Dimension 0.098" Dia x 0.248" L (2.50mm x 6.30mm) 0.098" Dia x 0.248" L (2.50mm x 6.30mm) 0.098" Dia x 0.248" L (2.50mm x 6.30mm) 0.098" Dia x 0.248" L (2.50mm x 6.30mm) 0.098" Dia x 0.248" L (2.50mm x 6.30mm) 0.098" Dia x 0.248" L (2.50mm x 6.30mm)
Height - Seated (Max) - - - - - -
Number of Terminations 2 2 2 2 2 2
Failure Rate - - - - - -
