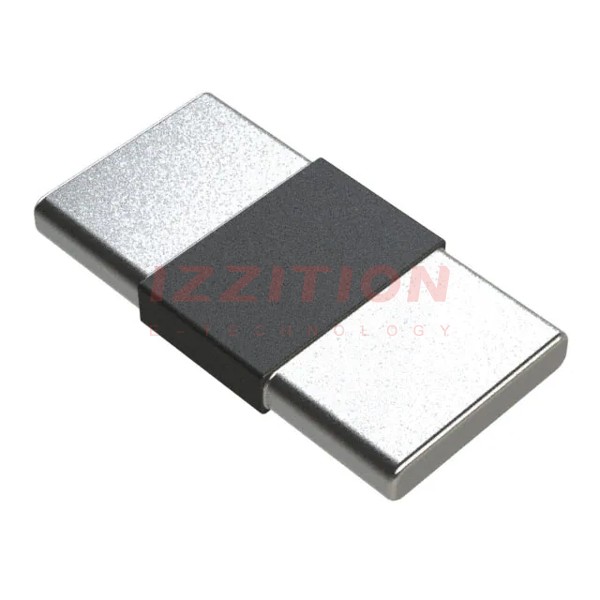

| Part Number | PA2512FKM7W0R001E | PA2512FKM7W0R005E | PA2512FKM7W0R002E | PA2512FKE7W0R001E | PA2512FKF7W0R001E |
|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 5 mOhms | 2 MOhms | 1 MOhms | 1 MOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±50ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
