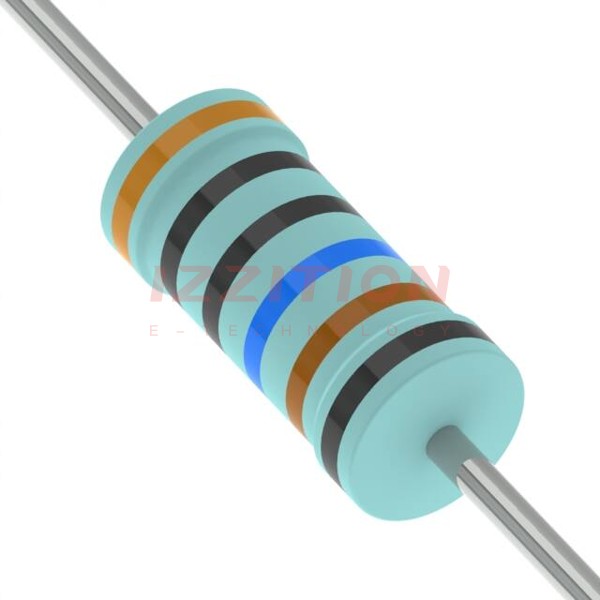

| Part Number | NKN7WSFR-73-0R3 | NKN7WSFR-73-0R33 | NKN7WSFR-73-0R39 | NKN7WSFR-73-0R43 | NKN7WSFR-73-0R5 | NKN7WSFR-73-1R3 | NKN7WSFR-73-2R3 | NKN7WSFR-73-3R3 | NKN5WSFR-73-0R3 | NKN7WSFR-73-0R1 | NKN7WSFR-73-0R2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 300 mOhms | 330 mOhms | 390 mOhms | 430 mOhms | 500 mOhms | 1.3 Ohms | 2.3 Ohms | 3.3 Ohms | 300 mOhms | 100 mOhms | 200 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 5W | 7W | 7W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
