Please send RFQ , we will respond immediately.

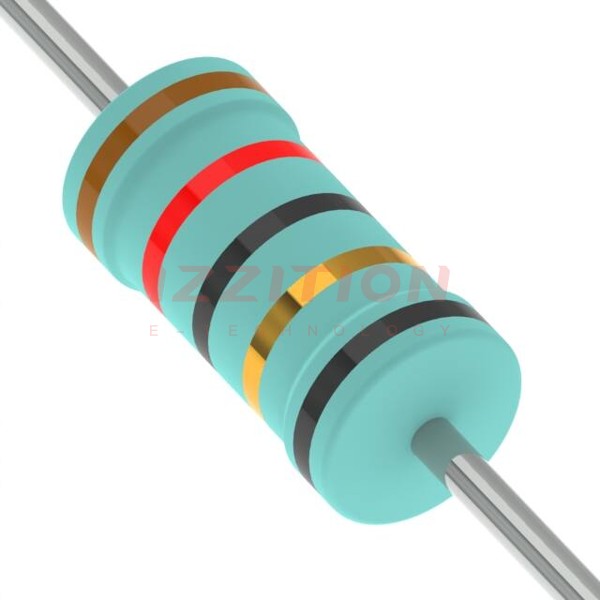

| Part Number | NKN5WSJR-73-12R | NKN5WSJR-73-16R | NKN5WSJR-73-15R | NKN5WSJR-73-18R | NKN5WSJR-73-1R | NKN5WSJR-73-22R | NKN5WSJR-73-2R | NKN5WSFR-73-12R | NKN5WSJR-73-10R |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Resistance | 12 Ohms | 16 Ohms | 15 Ohms | 18 Ohms | 1 Ohms | 22 Ohms | 2 Ohms | 12 Ohms | 10 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety |
| Temperature Coefficient | - | - | - | - | - | - | - | ±300ppm/°C | - |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
