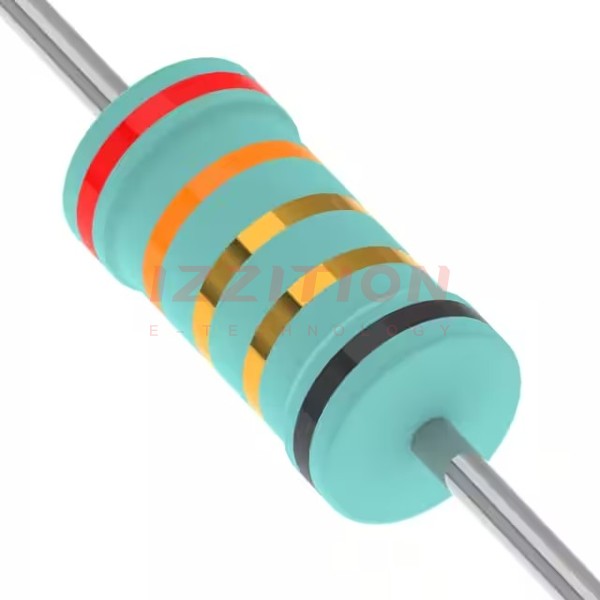

| Part Number | NKN200JR-73-2R3 | NKN200JR-73-2R7 | NKN200JR-73-3R3 | NKN200FR-73-2R3 | NKN200JR-73-0R3 | NKN200JR-73-1R3 | NKN200JR-73-2R | NKN200JR-73-2R2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Resistance | 2.3 Ohms | 2.7 Ohms | 3.3 Ohms | 2.3 Ohms | 300 mOhms | 1.3 Ohms | 2 Ohms | 2.2 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±1% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety |
| Temperature Coefficient | - | - | - | ±300ppm/°C | - | - | - | - |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
