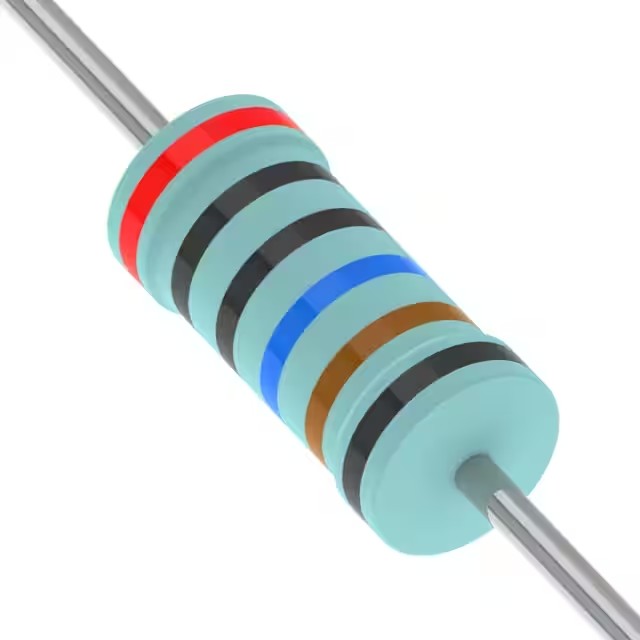

| Part Number | NKN200FR-73-0R2 | NKN200JR-73-0R2 | NKN200FR-73-0R24 | NKN200FR-73-2R2 | NKN200FR-73-8R2 | NKN200FR-73-0R22 | NKN200FR-73-0R27 | NKN200FR-73-0R3 | NKN200FR-73-0R5 | NKN200FR-73-0R82 | NKN200FR-73-0R1 | NKN200FR-73-0R12 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 200 mOhms | 200 mOhms | 240 mOhms | 2.2 Ohms | 8.2 Ohms | 220 mOhms | 270 mOhms | 300 mOhms | 500 mOhms | 820 mOhms | 100 mOhms | 120 mOhms |
| Tolerance | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety |
| Temperature Coefficient | ±300ppm/°C | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) | 0.209" Dia x 0.610" L (5.30mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
