Please send RFQ , we will respond immediately.

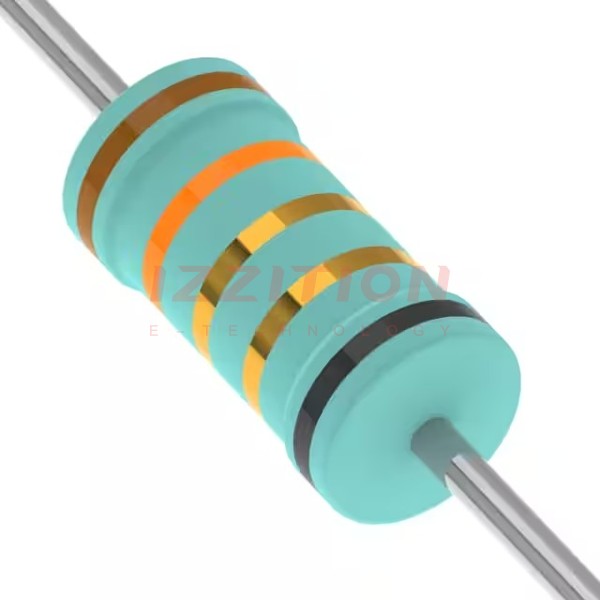

| Part Number | NKN-50JR-52-1R3 | NKN-50JR-52-1R4 | NKN-50JR-52-1R5 | NKN-50JR-52-2R3 | NKN-50JR-52-3R3 | NKN-50FR-52-1R3 | NKN-50JR-52-0R3 | NKN-50JR-52-1R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Resistance | 1.3 Ohms | 1.4 Ohms | 1.5 Ohms | 2.3 Ohms | 3.3 Ohms | 1.3 Ohms | 300 mOhms | 1 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% | ±5% | ±5% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety | Flame Retardant Coating, Non-Inductive, Safety |
| Temperature Coefficient | - | - | - | - | - | ±300ppm/°C | - | - |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
