Please send RFQ , we will respond immediately.

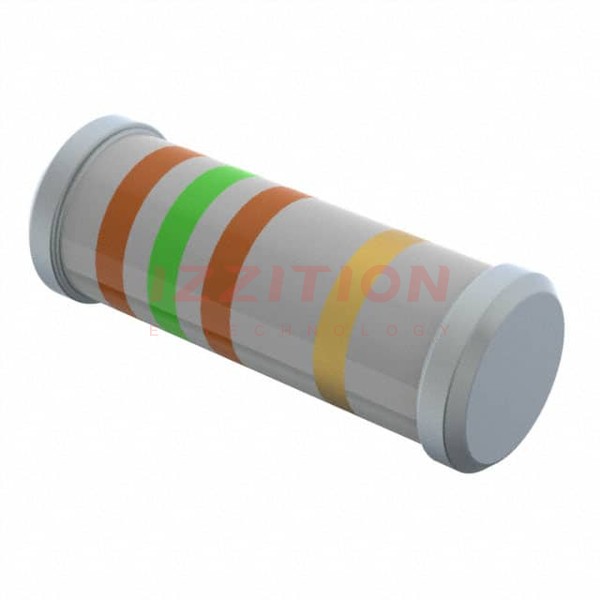

| Part Number | MMP100JR-150R | MMP100JR-15R | MMP100JR-160R | MMP100JR-180R | MMP100JR-100R | MMP100JR-10R | MMP100JR-110R | MMP100JR-120R | MMP100JR-130R | MMP100JR-150K |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 Ohms | 15 Ohms | 160 Ohms | 180 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms | 130 Ohms | 150 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 |
| Supplier Device Package | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
