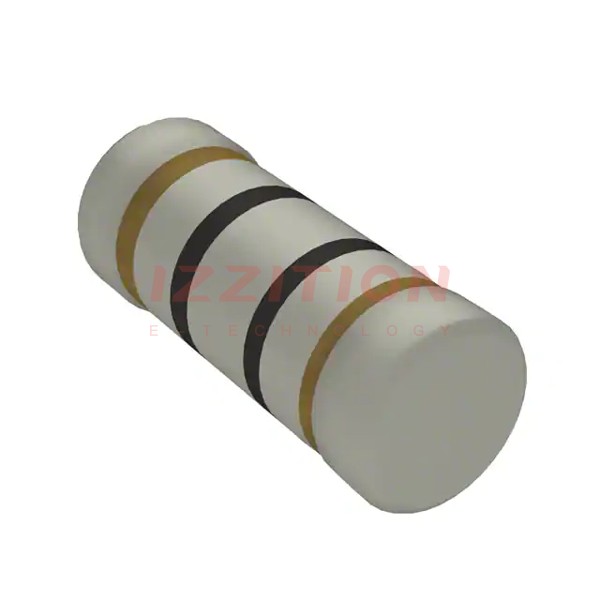

| Part Number | MMF50SFRF10R | MMF50SFRF120R | MMF50SFRF12R | MMF50SFRF150R | MMF50SFRF15R | MMF50SFRF180R | MMF50SFRF18R | MMF50SFRF510R | MMF50SFRF910R | MMF50SFRF100R | MMF50SFRF10K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 120 Ohms | 12 Ohms | 150 Ohms | 15 Ohms | 180 Ohms | 18 Ohms | 510 Ohms | 910 Ohms | 100 Ohms | 10 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 |
| Supplier Device Package | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
