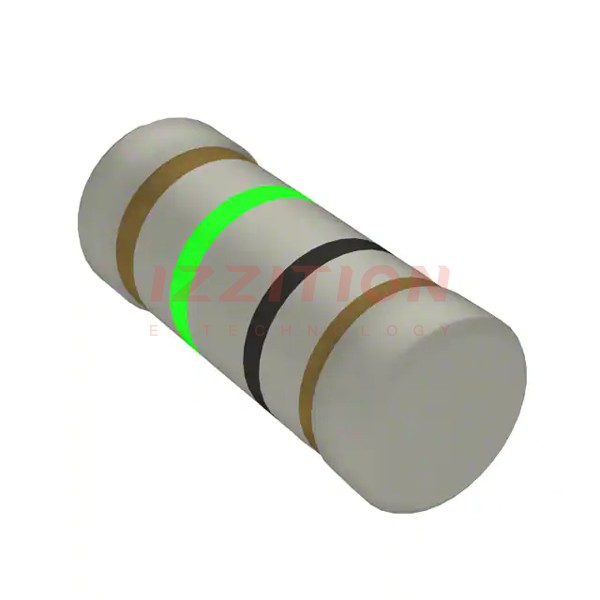

| Part Number | MMF25SFRF15R | MMF25SFRF1R | MMF25SFRF75R | MMF25SFRF18R | MMF25SFRE15R | MMF25SFRF10R | MMF25SFRF12R | MMF25SFRF150R | MMF25SFRF15K |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 15 Ohms | 1 Ohms | 75 Ohms | 18 Ohms | 15 Ohms | 10 Ohms | 12 Ohms | 150 Ohms | 15 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±50ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0204 | MELF, 0207 | MELF, 0204 | MELF, 0204 | MELF, 0204 | MELF, 0204 | MELF, 0204 | MELF, 0204 | MELF, 0204 |
| Supplier Device Package | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
