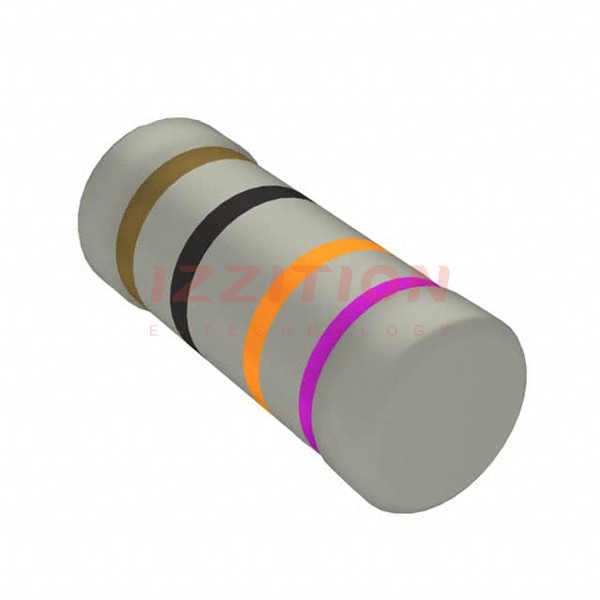

| Part Number | MMF-50BRD10K | MMF-50BRD12K | MMF-50BRD15K | MMF-50BRD18K | MMF-50BRD1K | MMF-50BRD20K | MMF-50BRD100K |
|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 kOhms | 12 kOhms | 15 kOhms | 18 kOhms | 1 kOhms | 20 kOhms | 100 kOhms |
| Tolerance | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0309 | MELF, 0309 | MELF, 0309 | MELF, 0309 | MELF, 0309 | MELF, 0309 | MELF, 0309 |
| Supplier Device Package | MELF | MELF | MELF | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - | - | - | - |
| Size / Dimension | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) | 0.126" Dia x 0.335" L (3.20mm x 8.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
