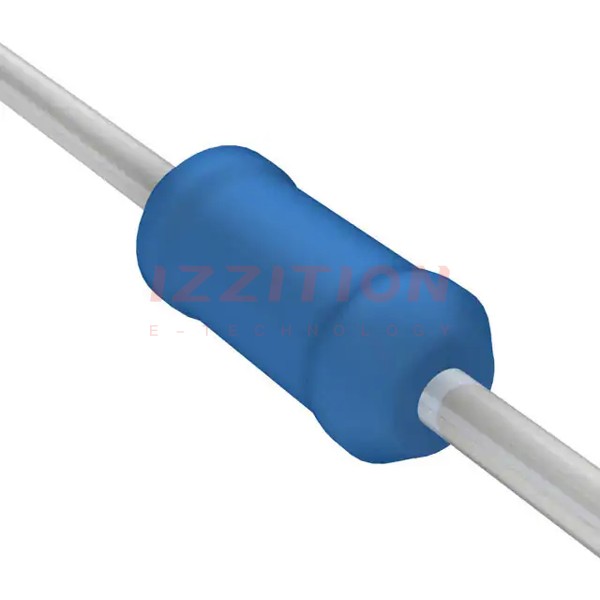

| Part Number | MHP-25PTA52-10K | MHP-25PTA52-510K | MHP-25PTA52-12K | MHP-25PTA52-15K | MHP-25PTA52-18K | MHP-25PTA52-1K | MHP-25PTA52-20K | MHP-25ATA52-10K | MHP-25PTA52-100K |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 10 kOhms | 510 kOhms | 12 kOhms | 15 kOhms | 18 kOhms | 1 kOhms | 20 kOhms | 10 kOhms | 100 kOhms |
| Tolerance | ±0.02% | ±0.02% | ±0.02% | ±0.02% | ±0.02% | ±0.02% | ±0.02% | ±0.05% | ±0.02% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C | ±5ppm/°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) | 0.071" Dia x 0.244" L (1.80mm x 6.20mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
