Please send RFQ , we will respond immediately.

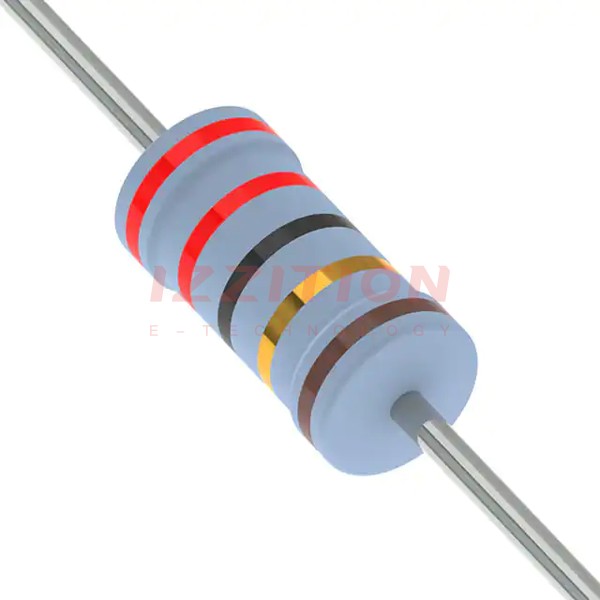

| Part Number | MFR2WSFTF52-22R | MFR2WSFTF52-22R1 | MFR2WSFTF52-22R6 | MFR2WSFTF52-232R | MFR2WSFTF52-24R | MFR2WSFTF52-27R | MFR2WSFTF52-28R | MFR2WSFTF52-20R | MFR2WSFTF52-21R | MFR2WSFTF52-220R | MFR2WSFTF52-221R | MFR2WSFTF52-226R | MFR2WSFTF52-22K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 22 Ohms | 22.1 Ohms | 22.6 Ohms | 232 Ohms | 24 Ohms | 27 Ohms | 28 Ohms | 20 Ohms | 21 Ohms | 220 Ohms | 221 Ohms | 226 Ohms | 22 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
