Please send RFQ , we will respond immediately.

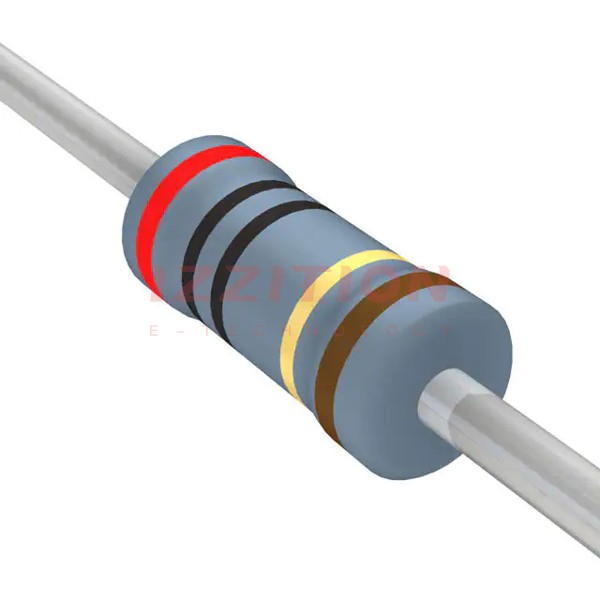

| Part Number | MFR1WSFRF52-20R | MFR1WSFRF52-20R5 | MFR1WSFRF52-210R | MFR1WSFRF52-21R | MFR1WSFRF52-220R | MFR1WSFRF52-22R | MFR1WSFRF52-24R | MFR1WSFRF52-270R | MFR1WSFRF52-27R | MFR1WSFRF52-280R | MFR1WSFRF52-28R | MFR1WSFRF52-200R | MFR1WSFRF52-205R | MFR1WSFRF52-20K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 Ohms | 20.5 Ohms | 210 Ohms | 21 Ohms | 220 Ohms | 22 Ohms | 24 Ohms | 270 Ohms | 27 Ohms | 280 Ohms | 28 Ohms | 200 Ohms | 205 Ohms | 20 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
