Please send RFQ , we will respond immediately.

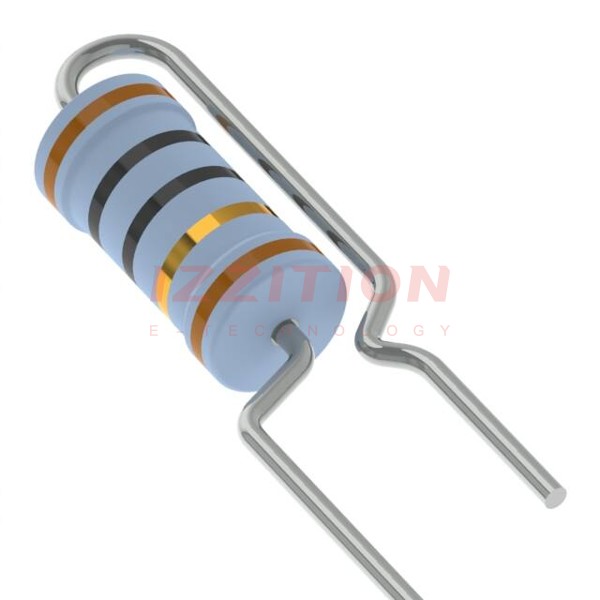

| Part Number | MFR-25FRFPN10R | MFR-25FRFPN10R2 | MFR-25FRFPN10R5 | MFR-25FRFPN10R7 | MFR-25FRFPN110R | MFR-25FRFPN11R | MFR-25FRFPN120R | MFR-25FRFPN12R | MFR-25FRFPN130R | MFR-25FRFPN13R | MFR-25FRFPN140R | MFR-25FRFPN14R | MFR-25FRFPN150R | MFR-25FRFPN15R | MFR-25FRFPN160R | MFR-25FRFPN16R | MFR-25FRFPN180R | MFR-25FRFPN100R | MFR-25FRFPN102R | MFR-25FRFPN105R | MFR-25FRFPN107R | MFR-25FRFPN10K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 10.2 Ohms | 10.5 Ohms | 10.7 Ohms | 110 Ohms | 11 Ohms | 120 Ohms | 12 Ohms | 130 Ohms | 13 Ohms | 140 Ohms | 14 Ohms | 150 Ohms | 15 Ohms | 160 Ohms | 16 Ohms | 180 Ohms | 100 Ohms | 102 Ohms | 105 Ohms | 107 Ohms | 10 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert | Panasert |
| Size / Dimension | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
