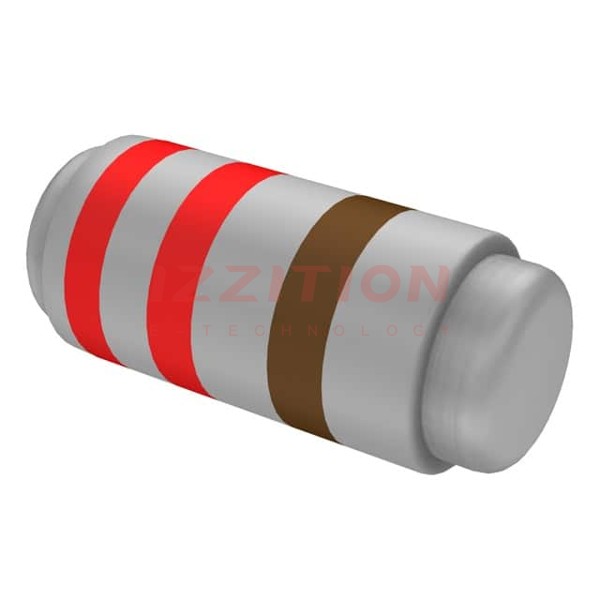

| Part Number | MCP100JR-220R | MCP100JR-22R | MCP100JR-270R | MCP100JR-120R |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Resistance | 220 Ohms | 22 Ohms | 270 Ohms | 120 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - |
| Temperature Coefficient | 0/ -350ppm/°C | 0/ -350ppm/°C | 0/ -350ppm/°C | 0/ -350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 |
| Supplier Device Package | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - |
| Size / Dimension | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) |
| Height - Seated (Max) | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
