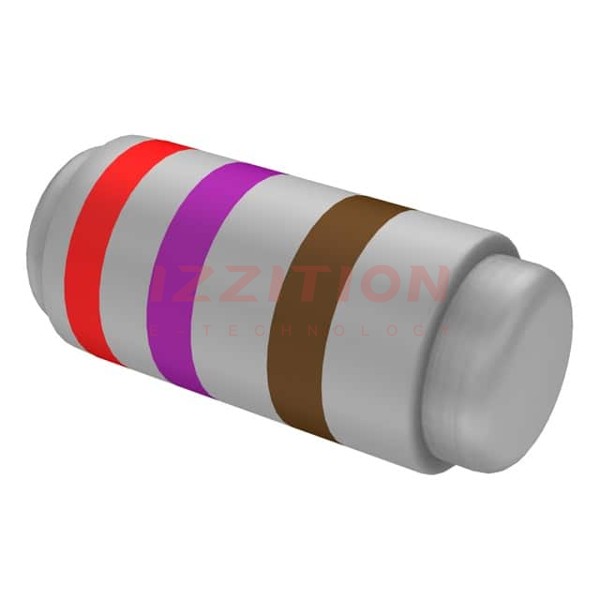

| Part Number | MCF25SJR-270R | MCF25SJR-27R | MCF25SJR-470R | MCF25SJR-220R |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Resistance | 270 Ohms | 27 Ohms | 470 Ohms | 220 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - |
| Temperature Coefficient | 0/ -350ppm/°C | 0/ -350ppm/°C | 0/ -350ppm/°C | 0/ -350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0204 | MELF, 0204 | MELF, 0204 | MELF, 0204 |
| Supplier Device Package | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - |
| Size / Dimension | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) | 0.055" Dia x 0.138" L (1.40mm x 3.50mm) |
| Height - Seated (Max) | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
