Please send RFQ , we will respond immediately.

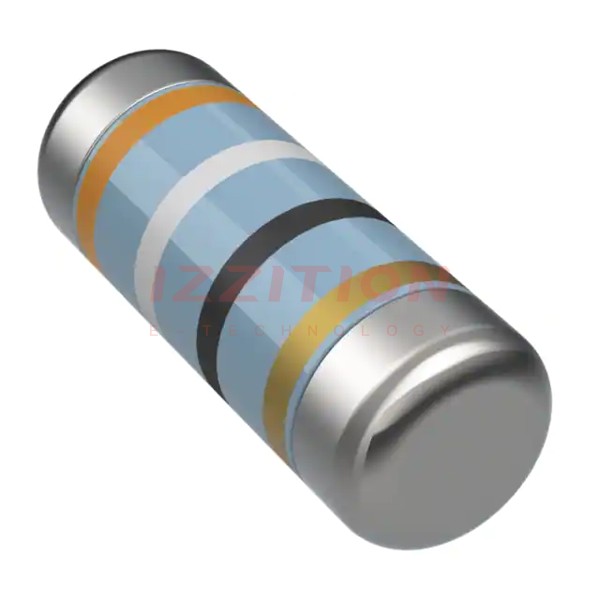

| Part Number | MCF-25JR-39R | MCF-25JR-33R | MCF-25JR-390R | MCF-25JR-39K |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Resistance | 39 Ohms | 33 Ohms | 390 Ohms | 39 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - |
| Temperature Coefficient | 0/ -350ppm/°C | 0/ -350ppm/°C | 0/ -350ppm/°C | 0/ -600ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | MELF, 0207 | MELF, 0207 | MELF, 0207 | MELF, 0207 |
| Supplier Device Package | MELF | MELF | MELF | MELF |
| Ratings | - | - | - | - |
| Size / Dimension | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) |
| Height - Seated (Max) | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
