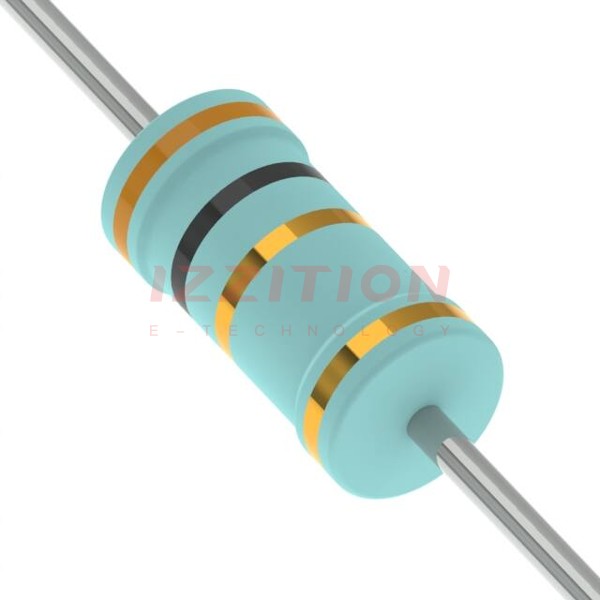

| Part Number | KNP7WSJT-91-3R | KNP7WSJT-91-3R3 | KNP7WSJT-91-3R6 | KNP7WSJT-91-3R9 | KNP7WSJT-91-43R | KNP7WSJB-91-3R | KNP7WSJT-91-13R | KNP7WSJT-91-1R | KNP7WSJT-91-2R | KNP7WSJT-91-30R | KNP7WSJT-91-33R | KNP7WSJT-91-36R | KNP7WSJT-91-39R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 3 Ohms | 3.3 Ohms | 3.6 Ohms | 3.9 Ohms | 43 Ohms | 3 Ohms | 13 Ohms | 1 Ohms | 2 Ohms | 30 Ohms | 33 Ohms | 36 Ohms | 39 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
