Please send RFQ , we will respond immediately.

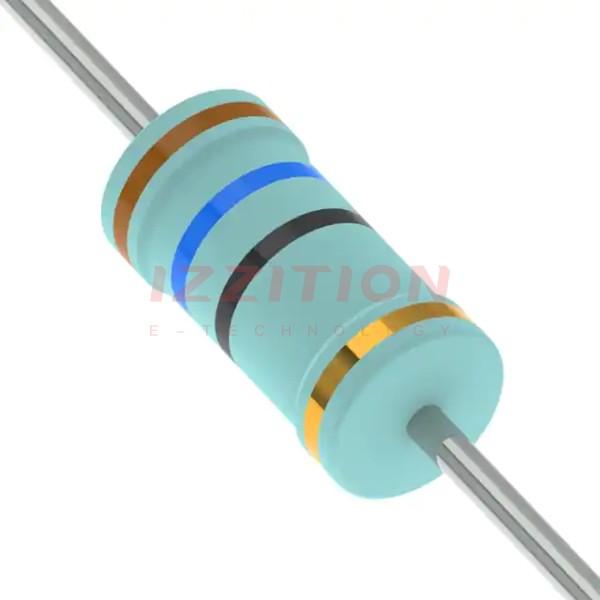

| Part Number | KNP3WSJT-52-16R | KNP3WSJT-52-18R | KNP3WSJT-52-1R | KNP3WSJT-52-36R | KNP3WSJT-52-56R | KNP3WSJT-52-10R | KNP3WSJT-52-11R | KNP3WSJT-52-12R | KNP3WSJT-52-13R | KNP3WSJT-52-15R | KNP3WSJT-52-160R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 16 Ohms | 18 Ohms | 1 Ohms | 36 Ohms | 56 Ohms | 10 Ohms | 11 Ohms | 12 Ohms | 13 Ohms | 15 Ohms | 160 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
