Please send RFQ , we will respond immediately.

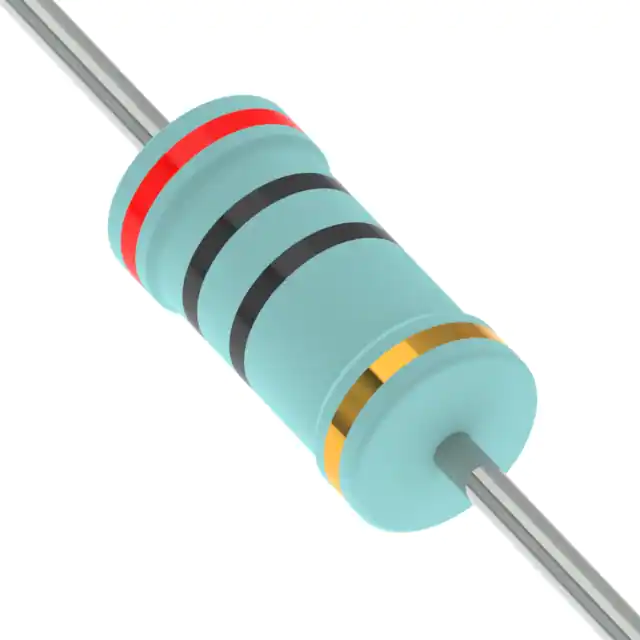

| Part Number | KNP3WSJR-52-20R | KNP3WSJR-52-220R | KNP3WSJR-52-22R | KNP3WSJR-52-240R | KNP3WSJR-52-24R | KNP3WSJR-52-270R | KNP3WSJR-52-27R | KNP3WSJR-52-2R | KNP3WSJR-52-30R | KNP3WSJR-52-620R | KNP3WSJR-52-10R | KNP3WSJR-52-120R | KNP3WSJR-52-200R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 Ohms | 220 Ohms | 22 Ohms | 240 Ohms | 24 Ohms | 270 Ohms | 27 Ohms | 2 Ohms | 30 Ohms | 620 Ohms | 10 Ohms | 120 Ohms | 200 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
