Please send RFQ , we will respond immediately.

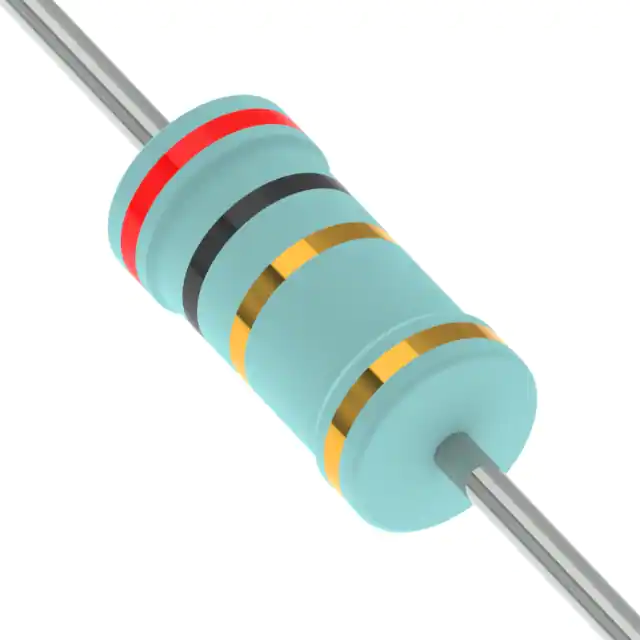

| Part Number | KNP3WSJB-52-2R | KNP3WSJB-52-2R2 | KNP3WSJB-52-2R4 | KNP3WSJB-52-2R7 | KNP3WSJB-52-3R | KNP3WSJB-52-62R | KNP3WSJB-52-82R | KNP3WSJB-52-12R | KNP3WSJB-52-1R | KNP3WSJB-52-20R | KNP3WSJB-52-22R | KNP3WSJB-52-24R | KNP3WSJB-52-27R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 2 Ohms | 2.2 Ohms | 2.4 Ohms | 2.7 Ohms | 3 Ohms | 62 Ohms | 82 Ohms | 12 Ohms | 1 Ohms | 20 Ohms | 22 Ohms | 24 Ohms | 27 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
