KNP3WSJB-52-20R
  • Share:

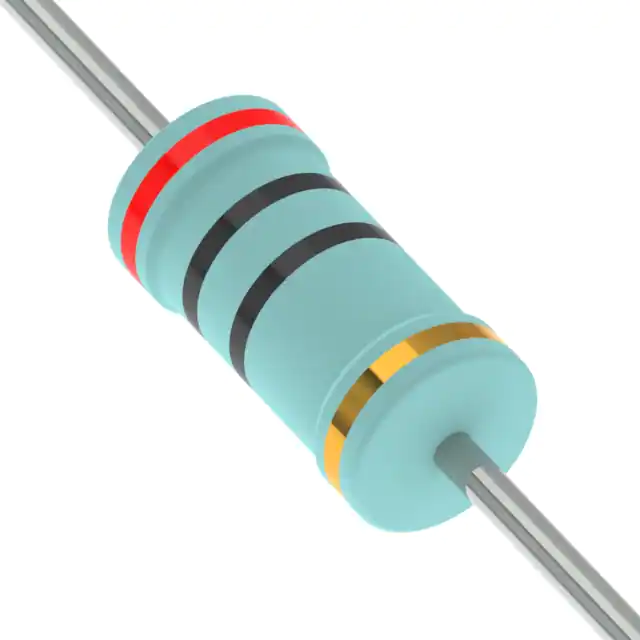

YAGEO KNP3WSJB-52-20R

Manufacturer No:
KNP3WSJB-52-20R
Manufacturer:
YAGEO
Package:
Bulk
Datasheet:
KNP3WSJB-52-20R Datasheet
ECAD Model:
-
Description:
RES 20 OHM 5% 3W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:20 Ohms
Tolerance:±5%
Power (Watts):3W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.205" Dia x 0.610" L (5.20mm x 15.50mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.10
7,666

Please send RFQ , we will respond immediately.

Similar Products

Part Number KNP3WSJB-52-20R KNP3WSJB-52-220R   KNP3WSJB-52-22R   KNP3WSJB-52-240R   KNP3WSJB-52-24R   KNP3WSJB-52-270R   KNP3WSJB-52-27R   KNP3WSJB-52-2R   KNP3WSJB-52-30R   KNP3WSJB-52-620R   KNP3WSJB-52-10R   KNP3WSJB-52-120R   KNP3WSJB-52-200R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active
Resistance 20 Ohms 220 Ohms 22 Ohms 240 Ohms 24 Ohms 270 Ohms 27 Ohms 2 Ohms 30 Ohms 620 Ohms 10 Ohms 120 Ohms 200 Ohms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm) 0.205" Dia x 0.610" L (5.20mm x 15.50mm)
Height - Seated (Max) - - - - - - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - - - - - - -
