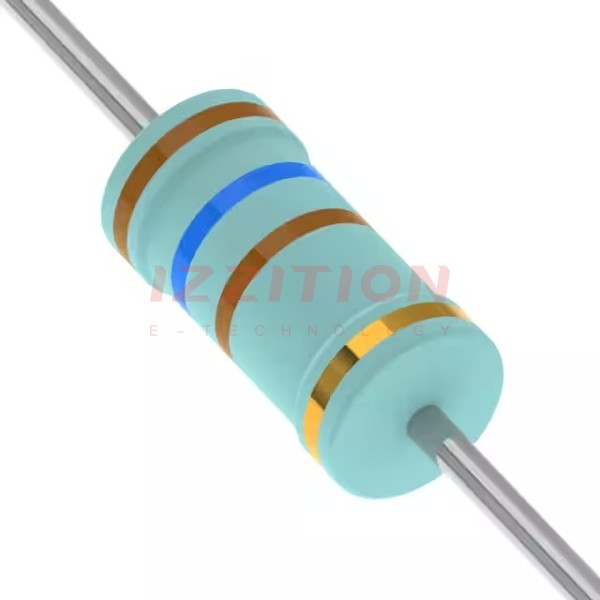

| Part Number | KNP3WSJB-52-160R | KNP3WSJB-52-16R | KNP3WSJB-52-180R | KNP3WSJB-52-360R | KNP3WSJB-52-560R | KNP3WSJB-52-100R | KNP3WSJB-52-10R | KNP3WSJB-52-110R | KNP3WSJB-52-120R | KNP3WSJB-52-130R | KNP3WSJB-52-150R |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 160 Ohms | 16 Ohms | 180 Ohms | 360 Ohms | 560 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms | 130 Ohms | 150 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) | 0.205" Dia x 0.610" L (5.20mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
