KNP1WSJB-52-560R
  • Share:

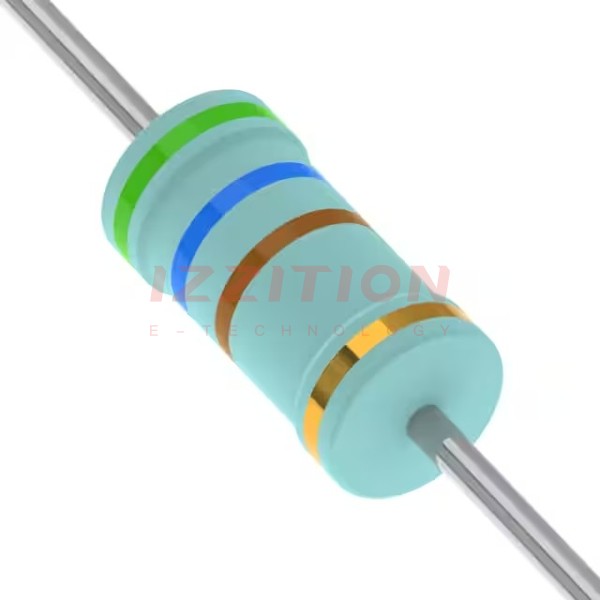

YAGEO KNP1WSJB-52-560R

Manufacturer No:
KNP1WSJB-52-560R
Manufacturer:
YAGEO
Package:
Bulk
Datasheet:
KNP1WSJB-52-560R Datasheet
ECAD Model:
-
Description:
RES 560 OHM 5% 1W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:560 Ohms
Tolerance:±5%
Power (Watts):1W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.138" Dia x 0.354" L (3.50mm x 9.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.04
11,722

Please send RFQ , we will respond immediately.

Similar Products

Part Number KNP1WSJB-52-560R KNP1WSJB-52-56R   KNP1WSJR-52-560R   KNP1WSJB-52-160R   KNP1WSJB-52-360R   KNP1WSJB-52-510R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active
Resistance 560 Ohms 56 Ohms 560 Ohms 160 Ohms 360 Ohms 510 Ohms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 1W 1W 1W 1W 1W 1W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial
Size / Dimension 0.138" Dia x 0.354" L (3.50mm x 9.00mm) 0.138" Dia x 0.354" L (3.50mm x 9.00mm) 0.138" Dia x 0.354" L (3.50mm x 9.00mm) 0.138" Dia x 0.354" L (3.50mm x 9.00mm) 0.138" Dia x 0.354" L (3.50mm x 9.00mm) 0.138" Dia x 0.354" L (3.50mm x 9.00mm)
Height - Seated (Max) - - - - - -
Number of Terminations 2 2 2 2 2 2
Failure Rate - - - - - -
