Please send RFQ , we will respond immediately.

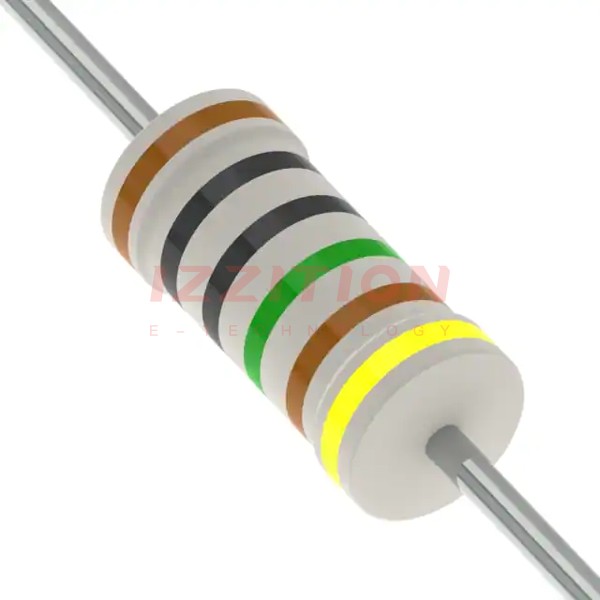

| Part Number | HHV-50FR-52-10M | HHV-50FR-52-1M | HHV-50FR-52-10M2 | HHV-50FR-52-10M5 | HHV-50FR-52-10M7 | HHV-50FR-52-11M | HHV-50FR-52-12M | HHV-50FR-52-13M | HHV-50FR-52-14M | HHV-50FR-52-15M | HHV-50FR-52-16M | HHV-50FR-52-18M | HHV-50FR-52-20M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 mOhms | 1 MOhms | 10.2 mOhms | 10.5 mOhms | 10.7 mOhms | 11 mOhms | 12 mOhms | 13 mOhms | 14 mOhms | 15 mOhms | 16 mOhms | 18 mOhms | 20 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
