Please send RFQ , we will respond immediately.

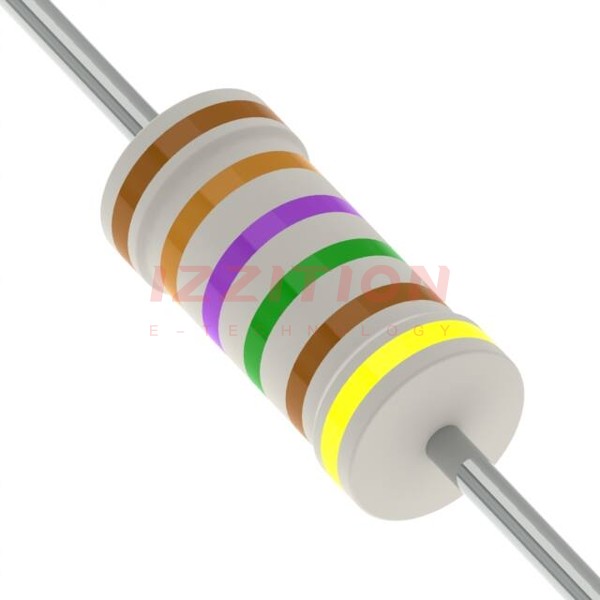

| Part Number | HHV-25FR-52-13M7 | HHV-25FR-52-14M7 | HHV-25FR-52-18M7 | HHV-25FR-52-10M7 | HHV-25FR-52-12M7 | HHV-25FR-52-13M | HHV-25FR-52-13M3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 13.7 mOhms | 14.7 mOhms | 18.7 mOhms | 10.7 mOhms | 12.7 mOhms | 13 mOhms | 13.3 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
