HHV-25FB-52-560K
  • Share:

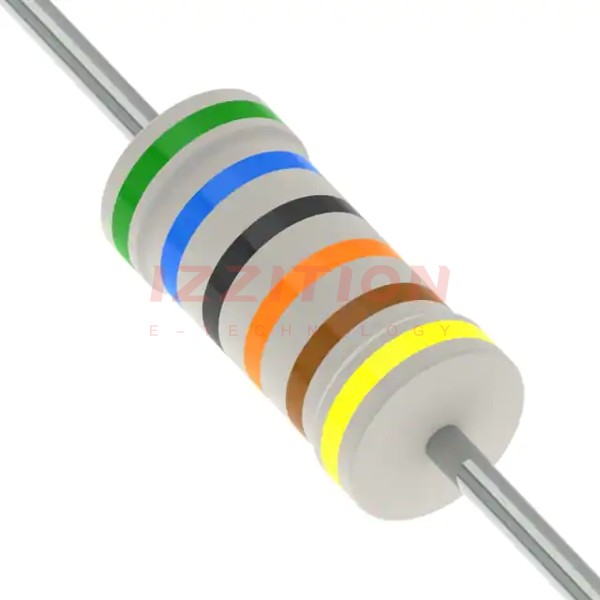

YAGEO HHV-25FB-52-560K

Manufacturer No:
HHV-25FB-52-560K
Manufacturer:
YAGEO
Package:
Bulk
Datasheet:
HHV-25FB-52-560K Datasheet
ECAD Model:
-
Description:
RES 560K OHM 1% 1/4W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:560 kOhms
Tolerance:±1%
Power (Watts):0.25W, 1/4W
Composition:Metal Film
Features:Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.05
16,987

Please send RFQ , we will respond immediately.

Similar Products

Part Number HHV-25FB-52-560K HHV-25FB-52-562K   HHV-25FB-52-56K   HHV-25FB-52-590K   HHV-25FB-52-360K   HHV-25FB-52-510K
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active
Resistance 560 kOhms 562 kOhms 56 kOhms 590 kOhms 360 kOhms 510 kOhms
Tolerance ±1% ±1% ±1% ±1% ±1% ±1%
Power (Watts) 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W
Composition Metal Film Metal Film Metal Film Metal Film Metal Film Metal Film
Features Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Package / Case Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial
Size / Dimension 0.094" Dia x 0.248" L (2.40mm x 6.30mm) 0.094" Dia x 0.248" L (2.40mm x 6.30mm) 0.094" Dia x 0.248" L (2.40mm x 6.30mm) 0.094" Dia x 0.248" L (2.40mm x 6.30mm) 0.094" Dia x 0.248" L (2.40mm x 6.30mm) 0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max) - - - - - -
Number of Terminations 2 2 2 2 2 2
Failure Rate - - - - - -
