YAGEO-FMP100JB-52-0R22 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	FMP100JB-52-0R22	FMP100JB-52-0R24	FMP100JB-52-0R27	FMP100JB-52-0R62	FMP100JB-52-0R82	FMP100JR-52-0R22	FMP100JB-52-0R12	FMP100JB-52-0R2
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	220 mOhms	240 mOhms	270 mOhms	620 mOhms	820 mOhms	220 mOhms	120 mOhms	200 mOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	1W	1W	1W	1W	1W	1W	1W	1W
Composition	Metal Film	Metal Film	Metal Film	Metal Film	Metal Film	Metal Film	Metal Film	Metal Film
Features	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety
Temperature Coefficient	±100ppm/°C	±100ppm/°C	±100ppm/°C	±100ppm/°C	±100ppm/°C	±100ppm/°C	±100ppm/°C	±100ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

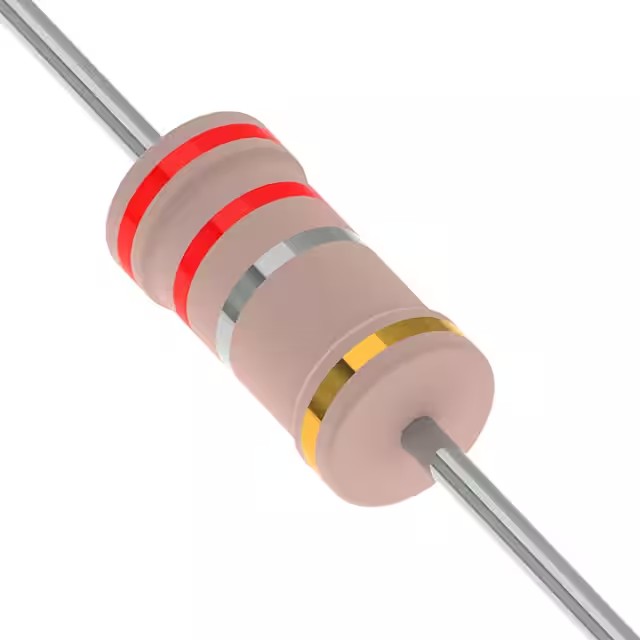

YAGEO FMP100JB-52-0R22
