Please send RFQ , we will respond immediately.

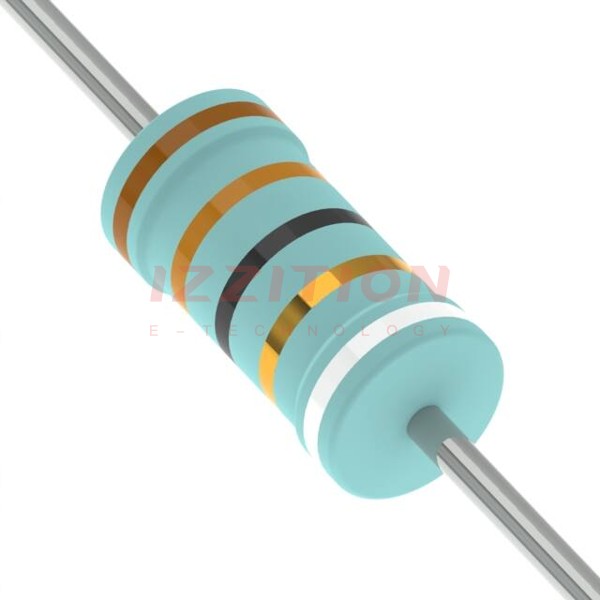

| Part Number | FKN1WSJR-52-13R | FKN1WSJR-52-15R | FKN1WSJR-52-16R | FKN1WSJR-52-18R | FKN1WSJR-52-1R | FKN1WSJR-52-33R | FKN1WSJR-52-3R | FKN1WSJR-52-43R | FKN1WSJT-52-13R | FKN1WSJB-52-13R | FKN1WSJR-52-10R | FKN1WSJR-52-11R | FKN1WSJR-52-12R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 13 Ohms | 15 Ohms | 16 Ohms | 18 Ohms | 1 Ohms | 33 Ohms | 3 Ohms | 43 Ohms | 13 Ohms | 13 Ohms | 10 Ohms | 11 Ohms | 12 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety |
| Temperature Coefficient | ±350ppm/°C | - | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | - | ±350ppm/°C | ±350ppm/°C |
| Operating Temperature | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
