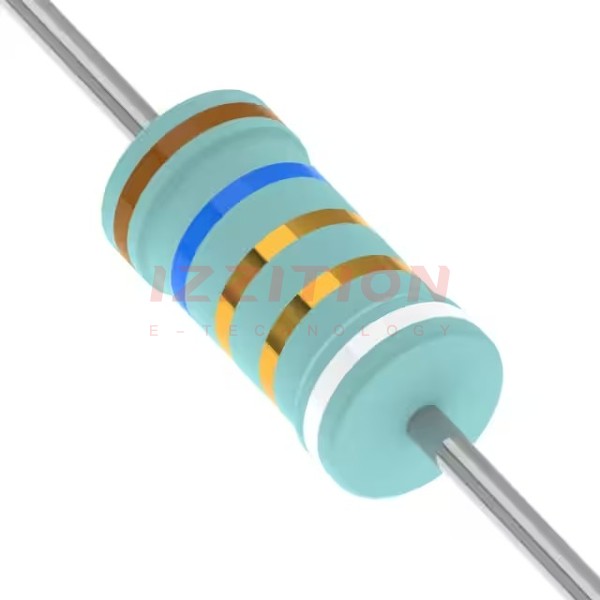

| Part Number | FKN-50JR-52-1R6 | FKN-50JR-52-1R8 | FKN-50JR-52-5R6 | FKN-50JR-52-3R6 | FKN-50JR-52-1R | FKN-50JR-52-1R1 | FKN-50JR-52-1R2 | FKN-50JR-52-1R3 | FKN-50JR-52-1R5 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1.6 Ohms | 1.8 Ohms | 5.6 Ohms | 3.6 Ohms | 1 Ohms | 1.1 Ohms | 1.2 Ohms | 1.3 Ohms | 1.5 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety | Flame Proof, Fusible, Safety |
| Temperature Coefficient | ±350ppm/°C | - | - | ±350ppm/°C | - | ±350ppm/°C | - | ±350ppm/°C | - |
| Operating Temperature | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C | -40°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.138" Dia x 0.354" L (3.50mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
