YAGEO-FCR-25JR-52-560R - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	FCR-25JR-52-560R	FCR-25JR-52-56R	FCR-25JR-52-160R	FCR-25JR-52-360R	FCR-25JR-52-510R	FCR-25JR-52-560K
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active
Resistance	560 Ohms	56 Ohms	160 Ohms	360 Ohms	510 Ohms	560 kOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety	Flame Proof, Safety
Temperature Coefficient	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	0/ -700ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max)	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-

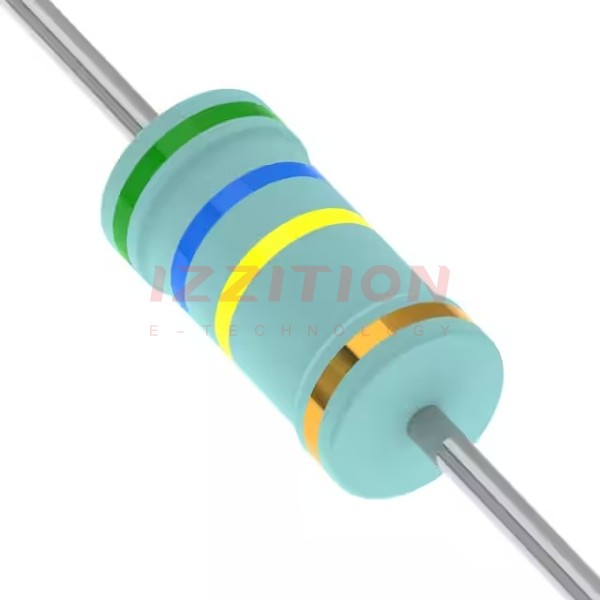

YAGEO FCR-25JR-52-560R
