CS1206KKX7RZBB102
  • Share:

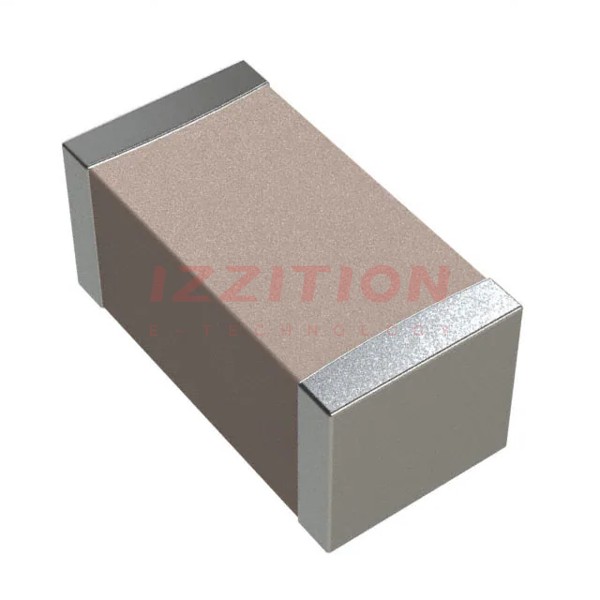

YAGEO CS1206KKX7RZBB102

Manufacturer No:
CS1206KKX7RZBB102
Manufacturer:
YAGEO
Package:
Tape & Reel (TR)
Datasheet:
CS1206KKX7RZBB102 Datasheet
ECAD Model:
-
Description:
CAP CER 1000PF 630V X7R 1206
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:1000 pF
Tolerance:±10%
Voltage - Rated:630V
Temperature Coefficient:X7R
Operating Temperature:-55°C ~ 125°C
Features:Soft Termination
Ratings:-
Applications:Boardflex Sensitive
Failure Rate:-
Mounting Type:Surface Mount, MLCC
Package / Case:1206 (3216 Metric)
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):-
Thickness (Max):0.057" (1.45mm)
Lead Spacing:-
Lead Style:-
0 Remaining View Similar

In Stock

$0.06
987

Please send RFQ , we will respond immediately.

Similar Products

Part Number CS1206KKX7RZBB102 CS1206KKX7RZBB152   CS1206KKX7RZBB103   CS1206JKX7RZBB102   CS1206KKX7RBBB102   CS1206KKX7RCBB102   CS1206KKX7RDBB102
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active
Capacitance 1000 pF 1500 pF 10000 pF 1000 pF 1000 pF 1000 pF 1000 pF
Tolerance ±10% ±10% ±10% ±5% ±10% ±10% ±10%
Voltage - Rated 630V 630V 630V 630V 500V 1000V (1kV) 2000V (2kV)
Temperature Coefficient X7R X7R X7R X7R X7R X7R X7R
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Features Soft Termination Soft Termination Soft Termination Soft Termination Soft Termination Soft Termination Soft Termination
Ratings - - - - - - -
Applications Boardflex Sensitive Boardflex Sensitive Boardflex Sensitive Boardflex Sensitive Boardflex Sensitive Boardflex Sensitive Boardflex Sensitive
Failure Rate - - - - - - -
Mounting Type Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC Surface Mount, MLCC
Package / Case 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) - - - - - - -
Thickness (Max) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm) 0.057" (1.45mm)
Lead Spacing - - - - - - -
Lead Style - - - - - - -
