Please send RFQ , we will respond immediately.

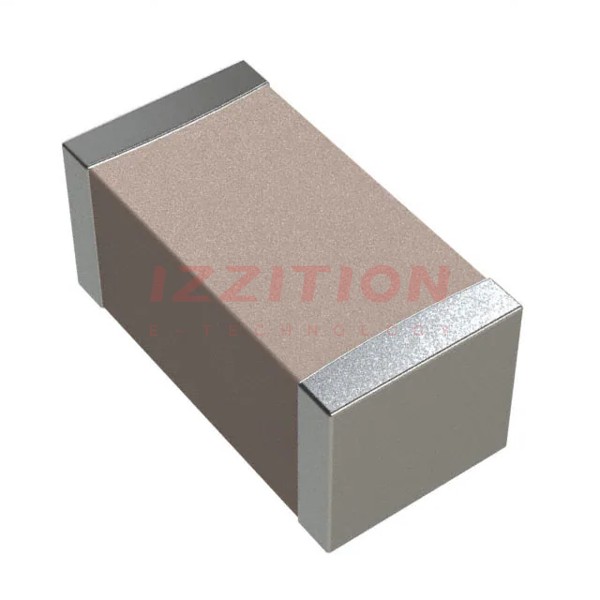

| Part Number | CS1206KKX7RBBB471 | CS1206KKX7RCBB471 | CS1206KKX7RZBB471 | CS1206KKX7RDBB471 | CS1206KKX7RBBB472 |
|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 470 pF | 470 pF | 470 pF | 470 pF | 4700 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 500V | 1000V (1kV) | 630V | 2000V (2kV) | 500V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Soft Termination | Soft Termination | Soft Termination | Soft Termination | Soft Termination |
| Ratings | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
