Please send RFQ , we will respond immediately.

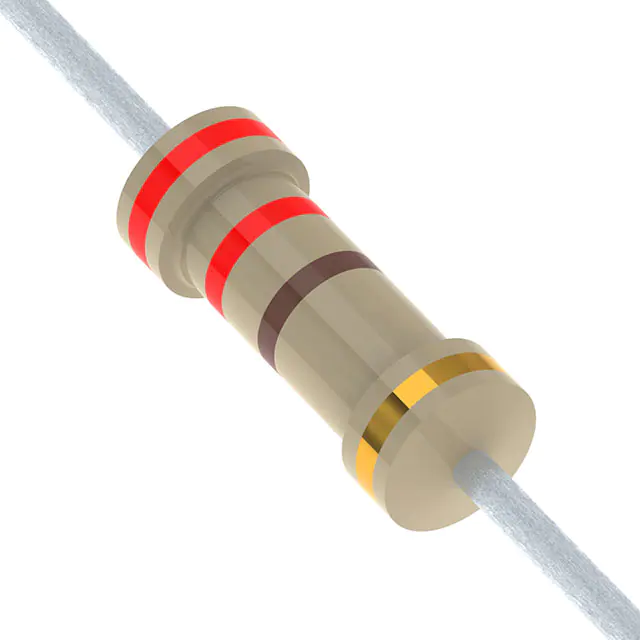

| Part Number | CFR3WSJT-73-220R | CFR3WSJT-73-22R | CFR3WSJT-73-240R | CFR3WSJT-73-270R | CFR3WSJT-73-620R | CFR3WSJT-73-820R | CFR3WSJT-73-120R | CFR3WSJT-73-200R | CFR3WSJT-73-20R | CFR3WSJT-73-220K |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 220 Ohms | 22 Ohms | 240 Ohms | 270 Ohms | 620 Ohms | 820 Ohms | 120 Ohms | 200 Ohms | 20 Ohms | 220 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | 0/ -500ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
