Please send RFQ , we will respond immediately.

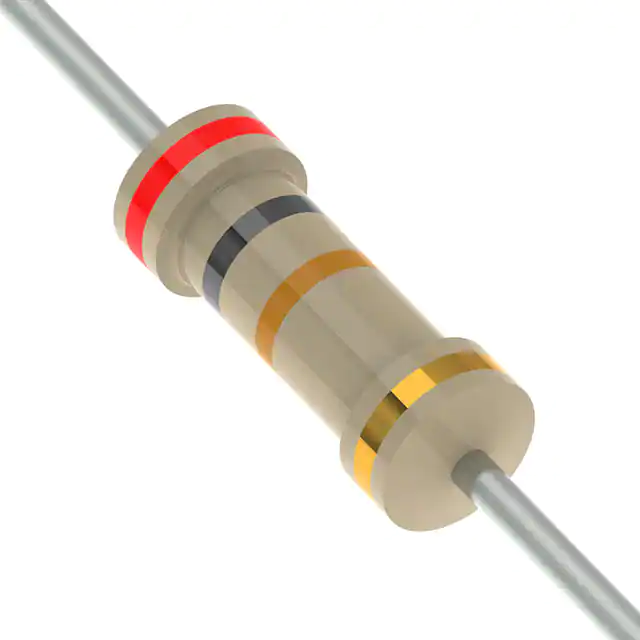

| Part Number | CFR3WSJT-73-20K | CFR3WSJT-73-20R | CFR3WSJT-73-220K | CFR3WSJT-73-22K | CFR3WSJT-73-240K | CFR3WSJT-73-24K | CFR3WSJT-73-270K | CFR3WSJT-73-27K | CFR3WSJT-73-2K | CFR3WSJT-73-30K | CFR3WSJT-73-620K | CFR3WSJT-73-820K | CFR3WSJT-73-10K | CFR3WSJT-73-120K | CFR3WSJT-73-200K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 kOhms | 20 Ohms | 220 kOhms | 22 kOhms | 240 kOhms | 24 kOhms | 270 kOhms | 27 kOhms | 2 kOhms | 30 kOhms | 620 kOhms | 820 kOhms | 10 kOhms | 120 kOhms | 200 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | 0/ -500ppm/°C | ±350ppm/°C | 0/ -500ppm/°C | ±350ppm/°C | 0/ -500ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | 0/ -500ppm/°C | 0/ -500ppm/°C | ±350ppm/°C | 0/ -500ppm/°C | 0/ -500ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
