Please send RFQ , we will respond immediately.

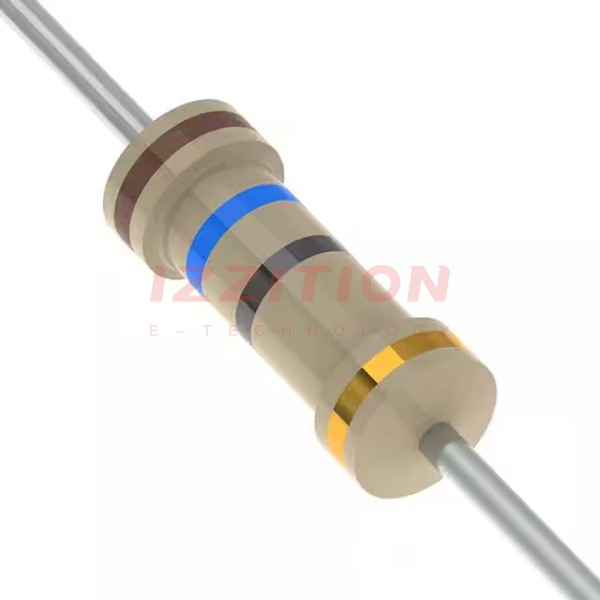

| Part Number | CFR3WSJT-73-16R | CFR3WSJT-73-18R | CFR3WSJT-73-36R | CFR3WSJT-73-56R | CFR3WSJT-73-10R | CFR3WSJT-73-11R | CFR3WSJT-73-12R | CFR3WSJT-73-13R | CFR3WSJT-73-15R | CFR3WSJT-73-160R | CFR3WSJT-73-16K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 16 Ohms | 18 Ohms | 36 Ohms | 56 Ohms | 10 Ohms | 11 Ohms | 12 Ohms | 13 Ohms | 15 Ohms | 160 Ohms | 16 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) | 0.197" Dia x 0.610" L (5.00mm x 15.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
