Please send RFQ , we will respond immediately.

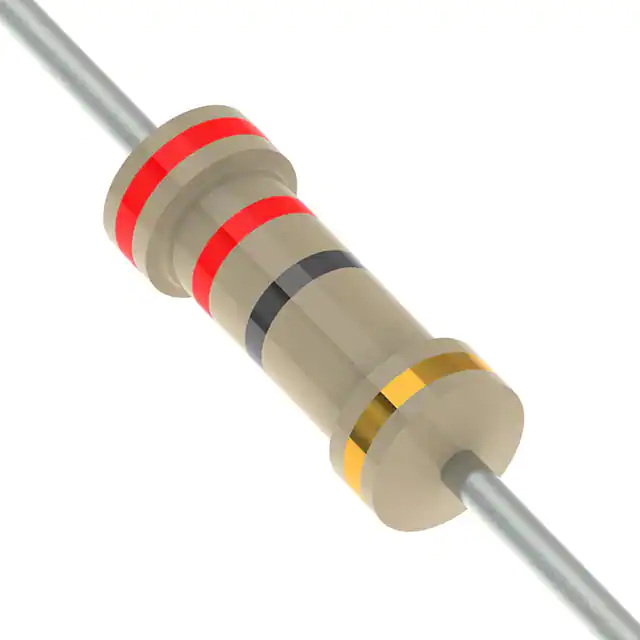

| Part Number | CFR25SJT-52-22R | CFR25SJT-52-24R | CFR25SJT-52-27R | CFR25SJT-52-62R | CFR25SJT-52-82R | CFR25SJT-52-12R | CFR25SJT-52-20R | CFR25SJT-52-220R | CFR25SJT-52-22K | CFR25SJT-52-22M |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 22 Ohms | 24 Ohms | 27 Ohms | 62 Ohms | 82 Ohms | 12 Ohms | 20 Ohms | 220 Ohms | 22 kOhms | 22 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -1500ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
