Please send RFQ , we will respond immediately.

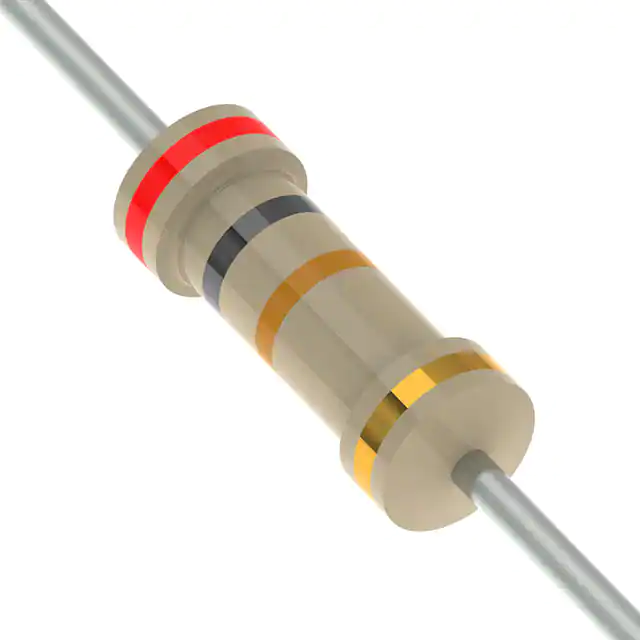

| Part Number | CFR25SJT-52-20K | CFR25SJT-52-20R | CFR25SJT-52-220K | CFR25SJT-52-22K | CFR25SJT-52-240K | CFR25SJT-52-24K | CFR25SJT-52-270K | CFR25SJT-52-27K | CFR25SJT-52-2K | CFR25SJT-52-30K | CFR25SJT-52-620K | CFR25SJT-52-820K | CFR25SJT-52-10K | CFR25SJT-52-120K | CFR25SJT-52-200K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 kOhms | 20 Ohms | 220 kOhms | 22 kOhms | 240 kOhms | 24 kOhms | 270 kOhms | 27 kOhms | 2 kOhms | 30 kOhms | 620 kOhms | 820 kOhms | 10 kOhms | 120 kOhms | 200 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C | 0/ -700ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C | 0/ -700ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) | 0.075" Dia x 0.134" L (1.90mm x 3.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
