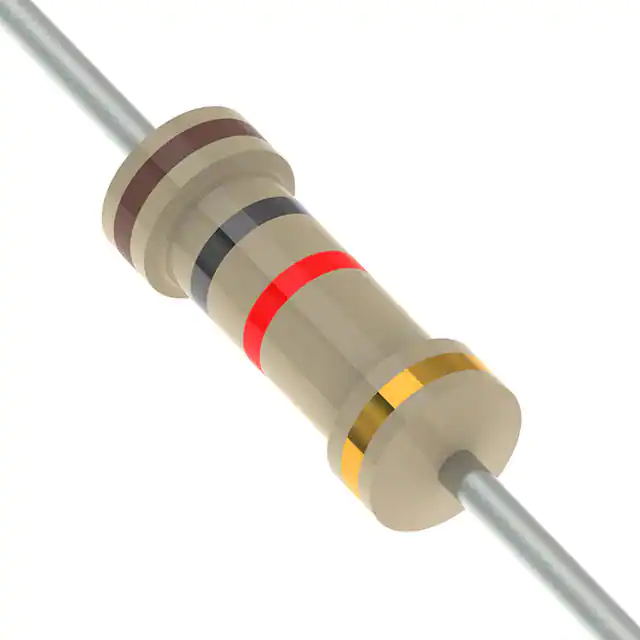

| Part Number | CFR100JR-52-1K | CFR100JR-52-1K1 | CFR100JR-52-1K2 | CFR100JR-52-1K3 | CFR100JR-52-1K5 | CFR100JR-52-1K6 | CFR100JR-52-1K8 | CFR100JR-52-1M | CFR100JR-52-2K | CFR100JR-52-3K | CFR100JR-52-51K | CFR100JR-52-91K | CFR100JR-52-10K | CFR100JR-52-11K | CFR100JR-52-12K | CFR100JR-52-13K | CFR100JR-52-15K | CFR100JR-52-16K | CFR100JR-52-18K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 kOhms | 1.1 kOhms | 1.2 kOhms | 1.3 kOhms | 1.5 kOhms | 1.6 kOhms | 1.8 kOhms | 1 MOhms | 2 kOhms | 3 kOhms | 51 kOhms | 91 kOhms | 10 kOhms | 11 kOhms | 12 kOhms | 13 kOhms | 15 kOhms | 16 kOhms | 18 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | 0/ -1500ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
