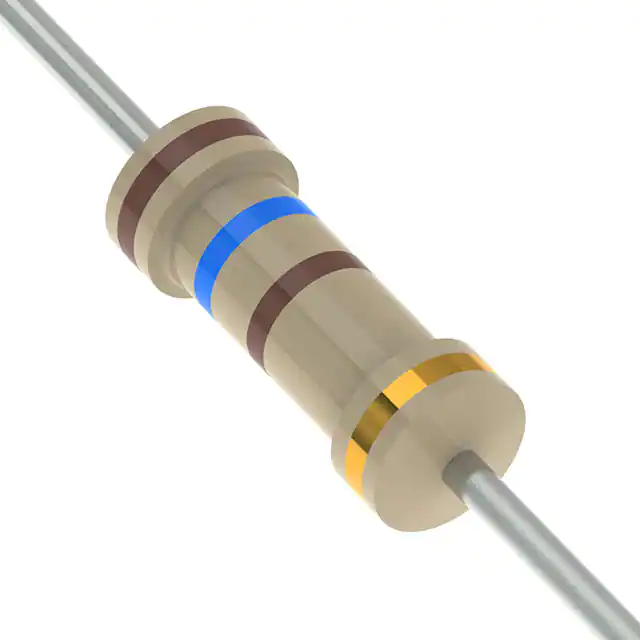

| Part Number | CFR100JR-52-160R | CFR100JR-52-16R | CFR100JR-52-180R | CFR100JR-52-360R | CFR100JR-52-560R | CFR100JR-52-100R | CFR100JR-52-10R | CFR100JR-52-110R | CFR100JR-52-120R | CFR100JR-52-130R | CFR100JR-52-150R | CFR100JR-52-160K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 160 Ohms | 16 Ohms | 180 Ohms | 360 Ohms | 560 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms | 130 Ohms | 150 Ohms | 160 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | 0/ -500ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
