Please send RFQ , we will respond immediately.

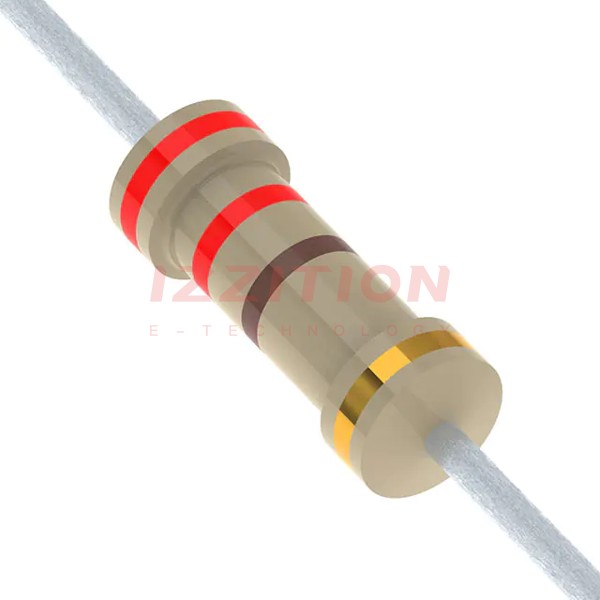

| Part Number | CFR-25JR-PN220R | CFR-25JR-PN22R | CFR-25JR-PN240R | CFR-25JR-PN270R | CFR-25JR-PN620R | CFR-25JR-PN820R | CFR-25JR-PN120R | CFR-25JR-PN200R | CFR-25JR-PN20R | CFR-25JR-PN220K |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 220 Ohms | 22 Ohms | 240 Ohms | 270 Ohms | 620 Ohms | 820 Ohms | 120 Ohms | 200 Ohms | 20 Ohms | 220 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
