Please send RFQ , we will respond immediately.

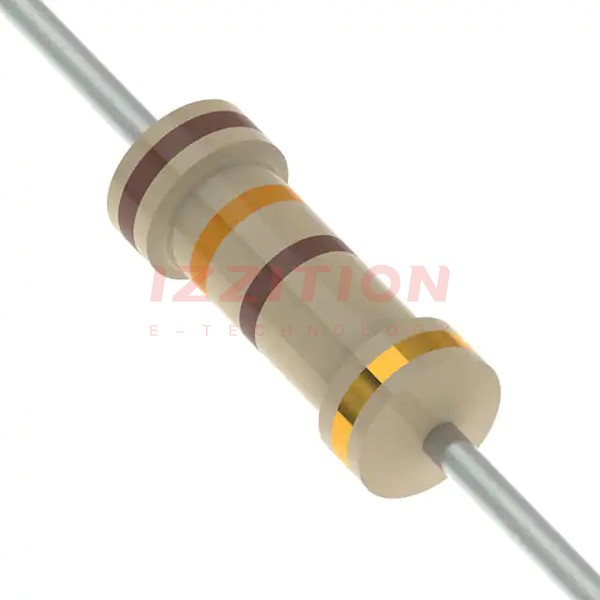

| Part Number | CFR-25JR-PN130R | CFR-25JR-PN13R | CFR-25JR-PN150R | CFR-25JR-PN160R | CFR-25JR-PN180R | CFR-25JR-PN30R | CFR-25JR-PN330R | CFR-25JR-PN430R | CFR-25JR-PN100R | CFR-25JR-PN10R | CFR-25JR-PN110R | CFR-25JR-PN120R | CFR-25JR-PN130K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 130 Ohms | 13 Ohms | 150 Ohms | 160 Ohms | 180 Ohms | 30 Ohms | 330 Ohms | 430 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms | 130 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
