YAGEO-CFR-25JR-52-3K6 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	CFR-25JR-52-3K6	CFR-25JR-52-3K9	CFR-25JR-52-5K6	CFR-25JR-52-3R6	CFR-25JR-52-3M6	CFR-25JR-52-1K6	CFR-25JR-52-3K	CFR-25JR-52-3K3
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	3.6 kOhms	3.9 kOhms	5.6 kOhms	3.6 Ohms	3.6 mOhms	1.6 kOhms	3 kOhms	3.3 kOhms
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power (Watts)	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W	0.25W, 1/4W
Composition	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film	Carbon Film
Features	-	-	-	-	-	-	-	-
Temperature Coefficient	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	0/ -1500ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C	-500/ +350ppm/°C
Operating Temperature	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C	-55°C ~ 155°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)	0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

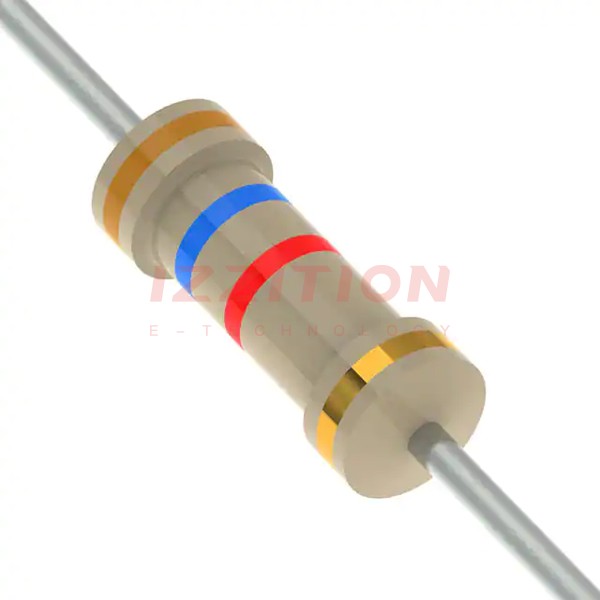

YAGEO CFR-25JR-52-3K6
