Please send RFQ , we will respond immediately.

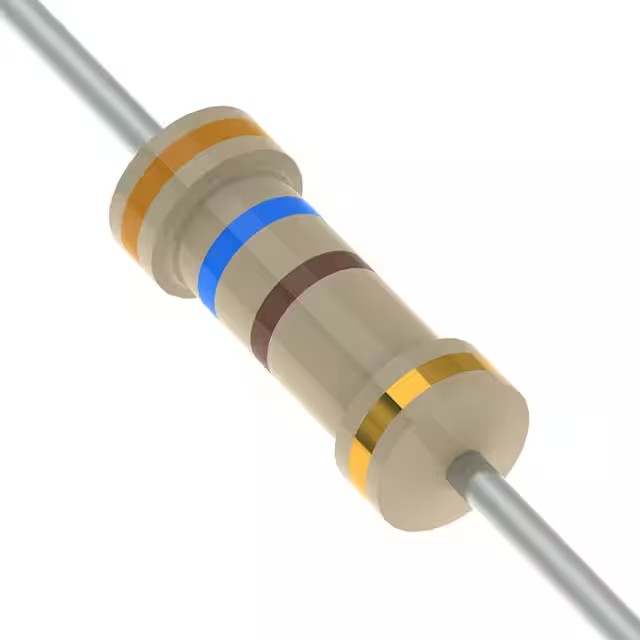

| Part Number | CFR-25JR-52-360R | CFR-25JR-52-560R | CFR-25JR-52-390R | CFR-25JR-52-36R | CFR-25JR-52-160R | CFR-25JR-52-300R | CFR-25JR-52-30R | CFR-25JR-52-330R | CFR-25JR-52-360K |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 360 Ohms | 560 Ohms | 390 Ohms | 36 Ohms | 160 Ohms | 300 Ohms | 30 Ohms | 330 Ohms | 360 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | -500/ +350ppm/°C | 0/ -700ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
